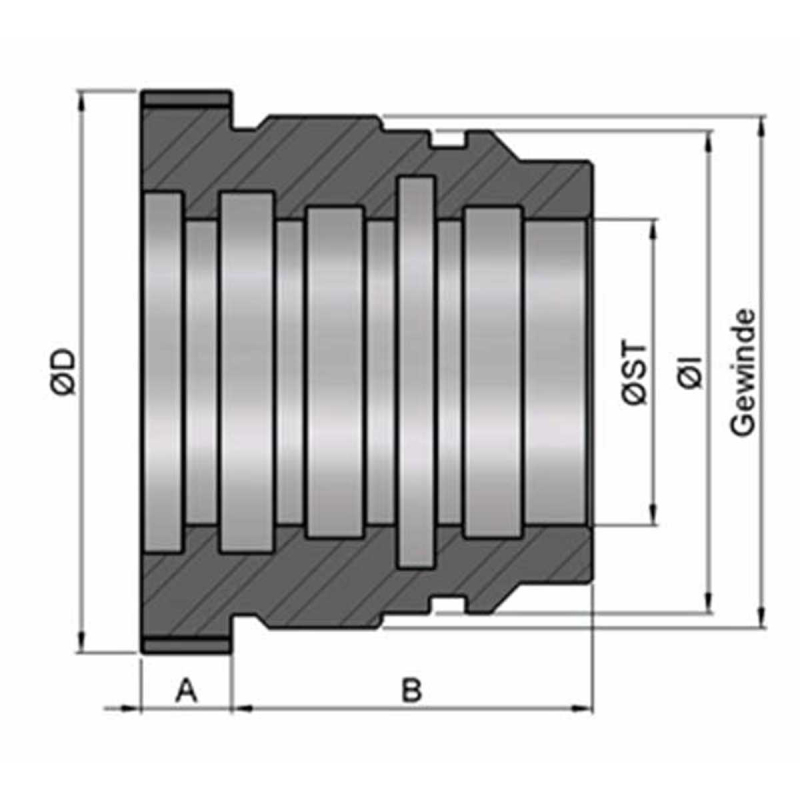

| Thread | M95x2.0 |
|---|---|
| Ø ST (bar Ø) | 45 |
| Ø I (inner cylinder tube Ø) | 90 |
| A (guide to thread) | 15 |
| B (thread to end of guide) | 60 |
| Ø D (outside Ø) | 110 |

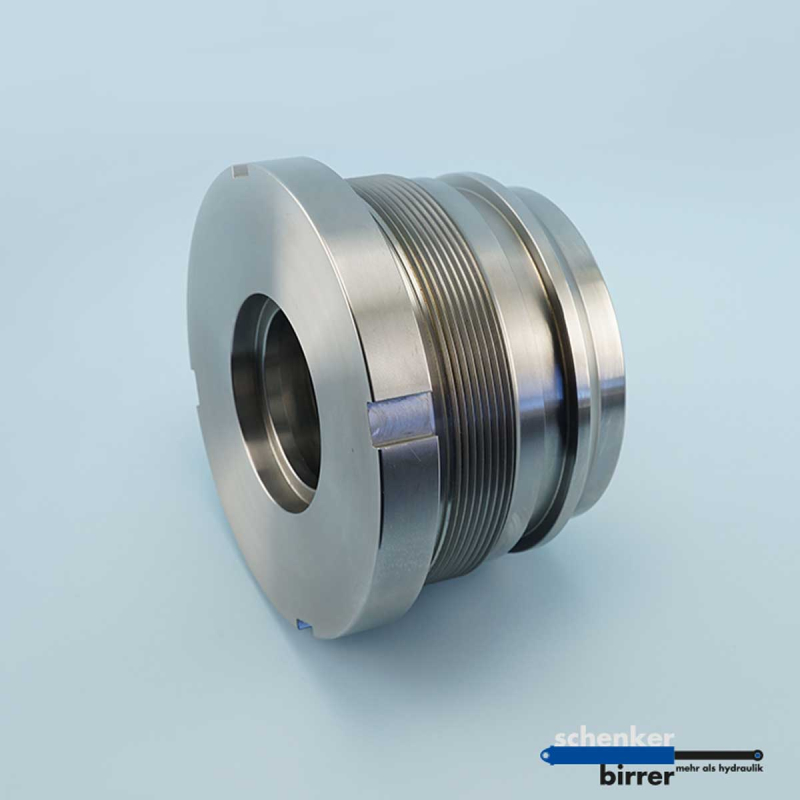

| Piston rod guide St 350bar (PDF) |
