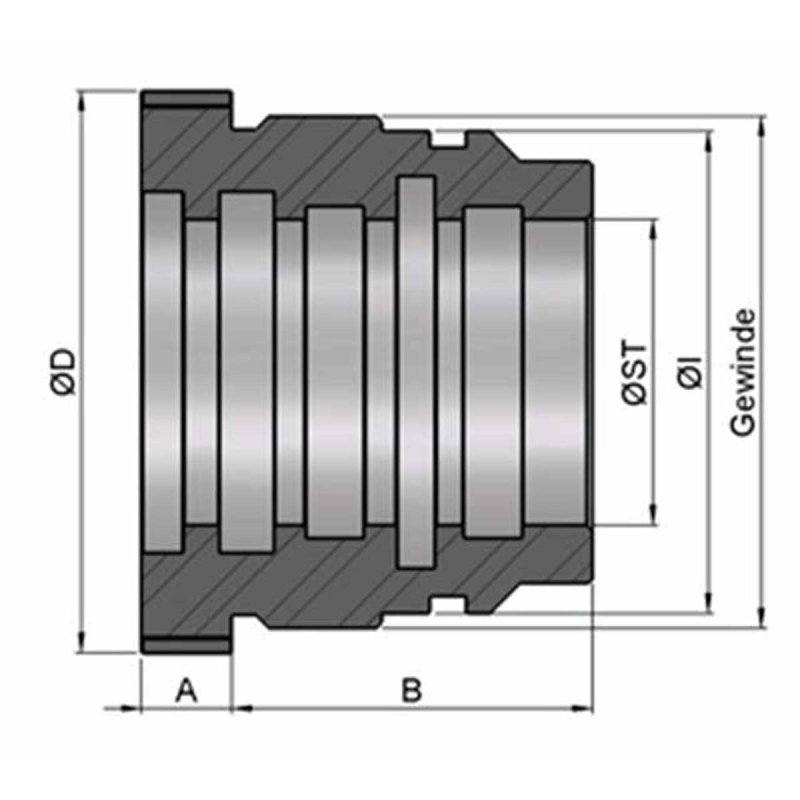

| Thread | M228x2.5 |
|---|---|
| Ø ST (bar Ø) | 120 |
| Ø I (inner cylinder tube Ø) | 220 |
| A (guide to thread) | 18 |
| B (thread to end of guide) | 112 |
| Ø D (outside Ø) | 245 |

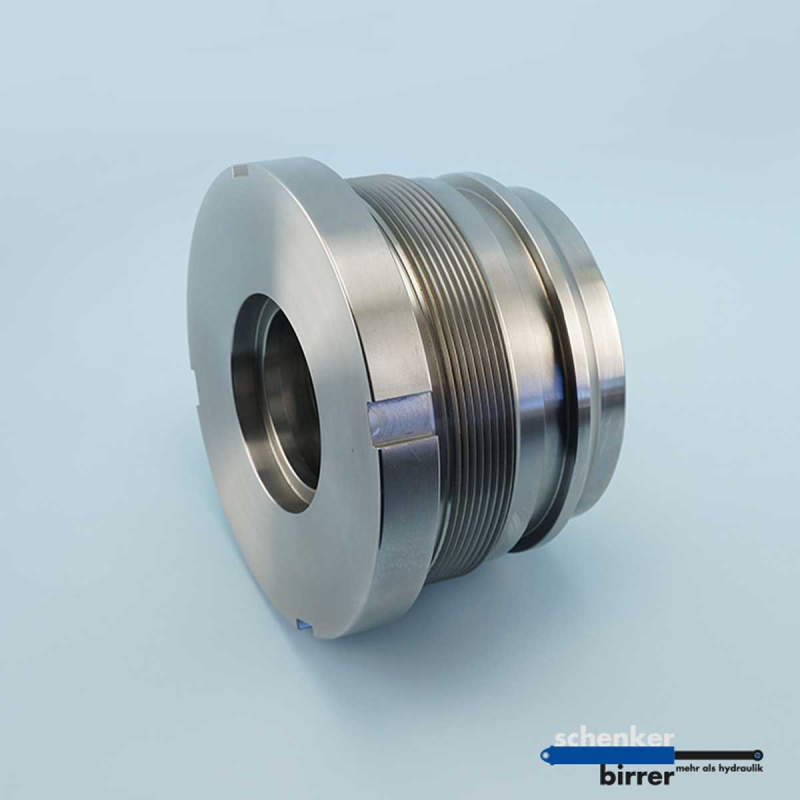

| Piston rod guide St 350bar (PDF) |
