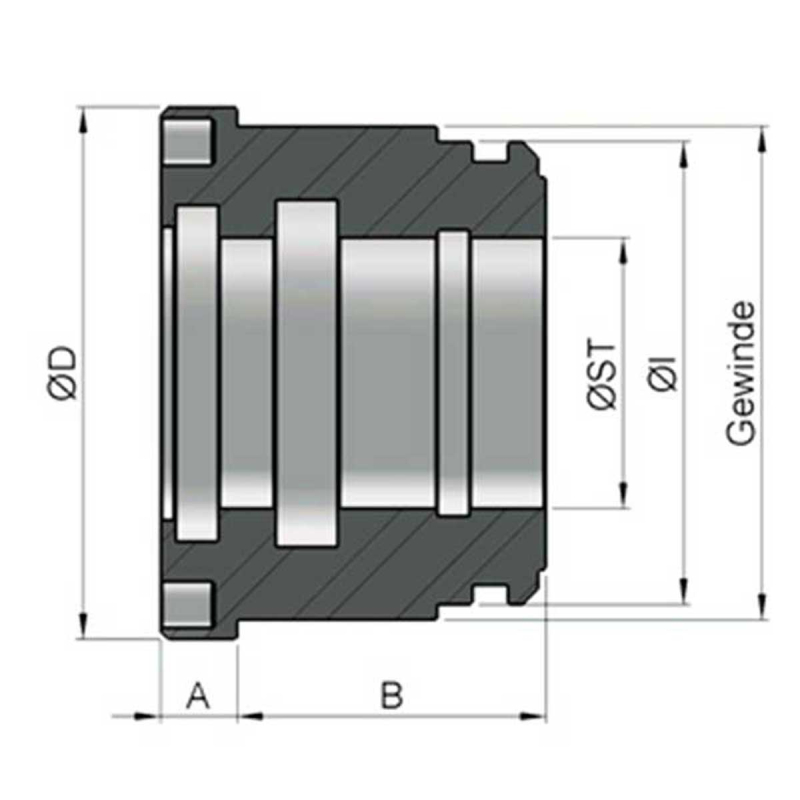

| Thread | M34x1.5 |
|---|---|
| Ø ST (bar Ø) | 20 |
| Ø I (inner cylinder tube Ø) | 30 |
| A (guide to thread) | 6 |
| B (thread to end of guide) | 27 |
| Ø D (outside Ø) | 40 |

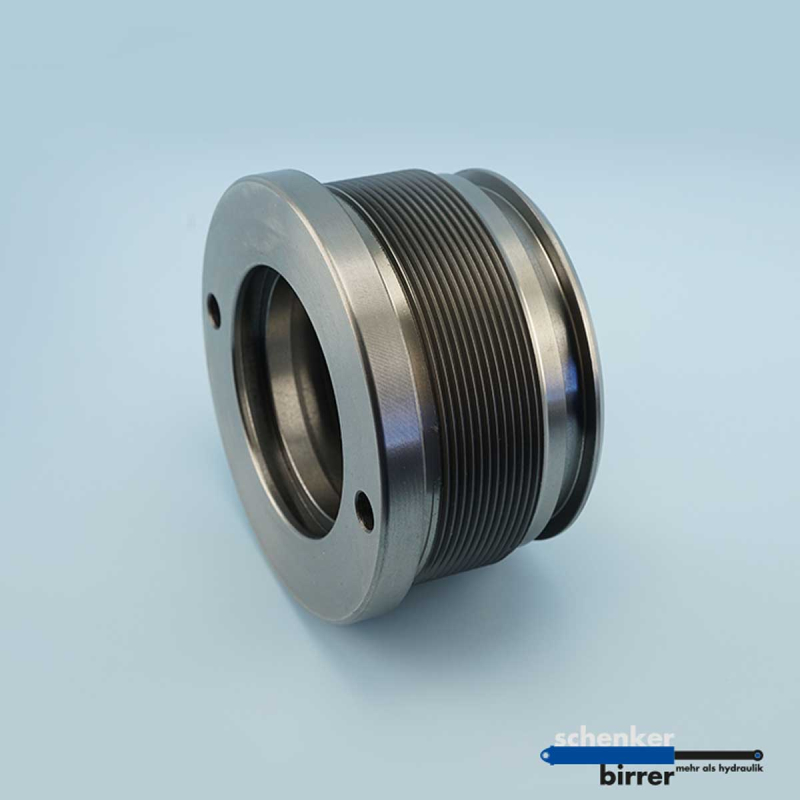

| Piston rod guide GG 250bar (PDF) |
